How to use SPI Debugger

By


 SPI Debugger

Hi Friends, in this post, we will discuss how to use SPI Debugger available in proteus for serial peripheral interface (SPI) which is a built-in feature of PIC microcontroller to communicate and data exchange between PIC and other devices.
SPI Debugger


Introduction to SPI

Guys, SPI can be considered as a programmable shift register, The SPI module is a synchronous serial I/O port that shifts a serial bit stream of variable length and data rate between the PIC and other peripheral devices. Here “synchronous” means that the data transmission is synchronized to a clock signal.

To avoid further delay, let's see some important connections and different configurations to effectively use SPI Debugger.

How to use SPI Debugger in MASTER & SLAVE configuration

Select the virtual instrument and from the instrument, list selects "SPI Debugger".
SPI Debugger


Insert two SPI Debugger on the working area, select any one of them, and right-click on it, navigate to edit properties.

SPI Debugger


In the "part reference" entry box insert MASTER, do the same for the second SPI Debugger, and insert SLAVE.
SPI Debugger

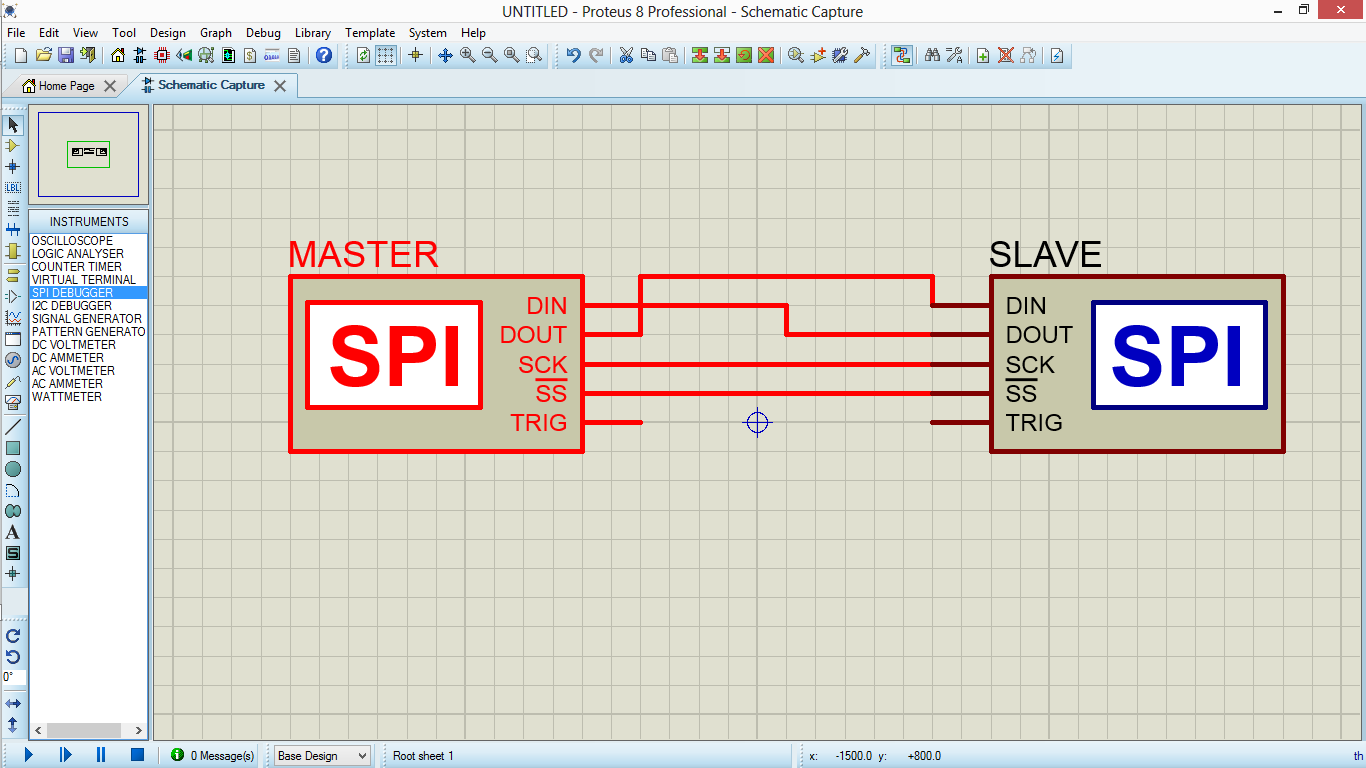

Connect both SPI debugger as shown below.(tip: right click on left-hand side SPI debugger and use "x-mirror" option )
SPI Debugger

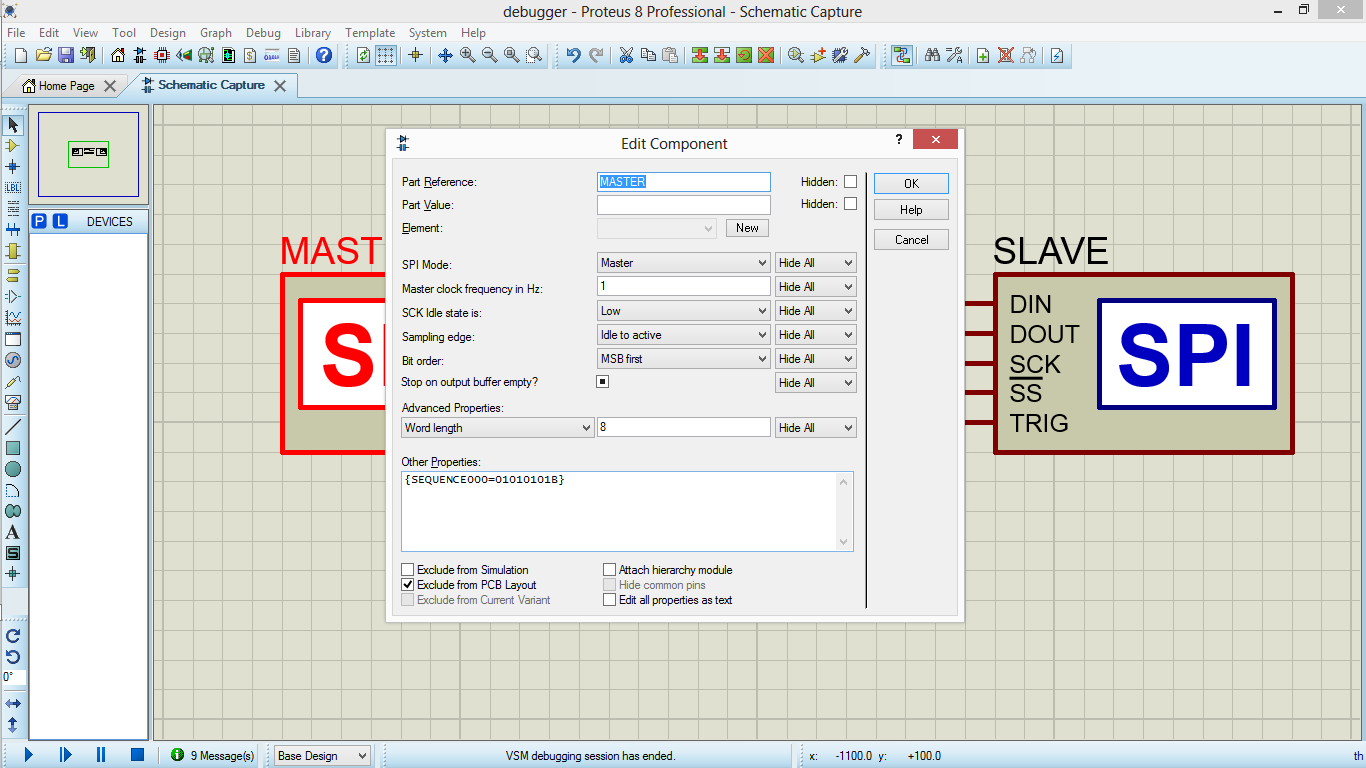

Next, right-click on MASTER SPI Debugger and select "SPI Mode" to "MASTER".
Insert 1 in "Master clock frequency.
Type binary sequence in other properties entry box {SEQUENCE = 01010101B}equivalent to 55 in HEX.


SPI Debugger



Next, right-click on SLAVE SPI Debugger and select "SPI Mode" to "SLAVE".
Insert 1 in "Master clock frequency.
Type binary sequence in other properties entry box {SEQUENCE = 11111111B} equivalent to FF in decimal.

SPI Debugger

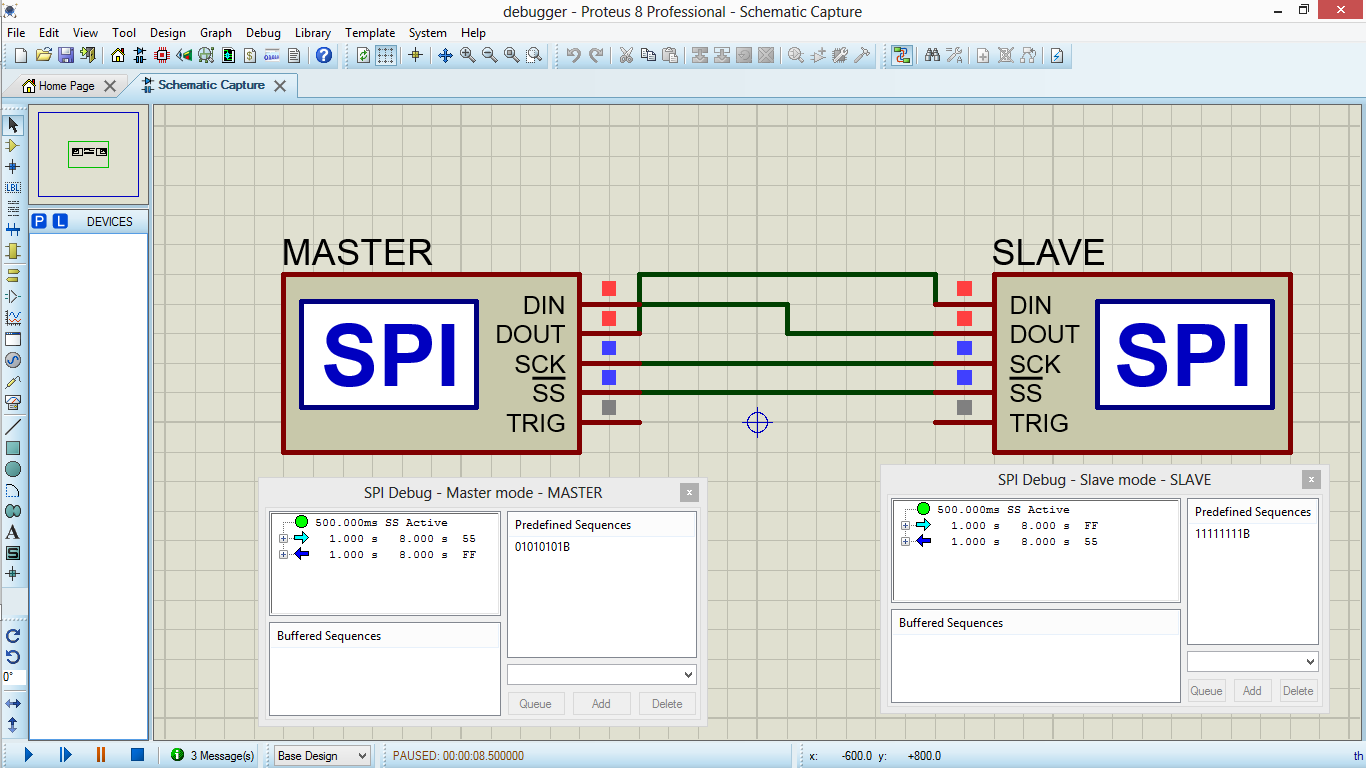

 Now, run the simulation, if everything goes fine both debugger terminals windows will be displayed and 8 bit will exchange between both terminals

SPI Debugger

tip: You can also open Terminal window from Debug
SPI Debugger



Friends, if you want to learn more!
Check out




Labels:

Comments

  1. UnknownJanuary 11, 2022 at 3:36 AM

    BOTH TERMINAL WINDOWS APEARS EMPTY

    ReplyDelete
  2. UnknownJanuary 11, 2022 at 3:38 AM

    WHILE RUNNING THE SIMULATION BOTH TERMINAL WINDOWS APPEARS EMPTY

    ReplyDelete
    Replies
    1. Owais KhanFebruary 5, 2022 at 6:37 AM

      Empty windows means user is not providing sequence in supported format.
      to avoid this problem you can be used a prefix to denote binary values (e.g 1101b).

      Delete
